Панельный разъем EtherCon D типа Neutrik NE8FDV-YK

Панельный разъем EtherCon D типа, IDC
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

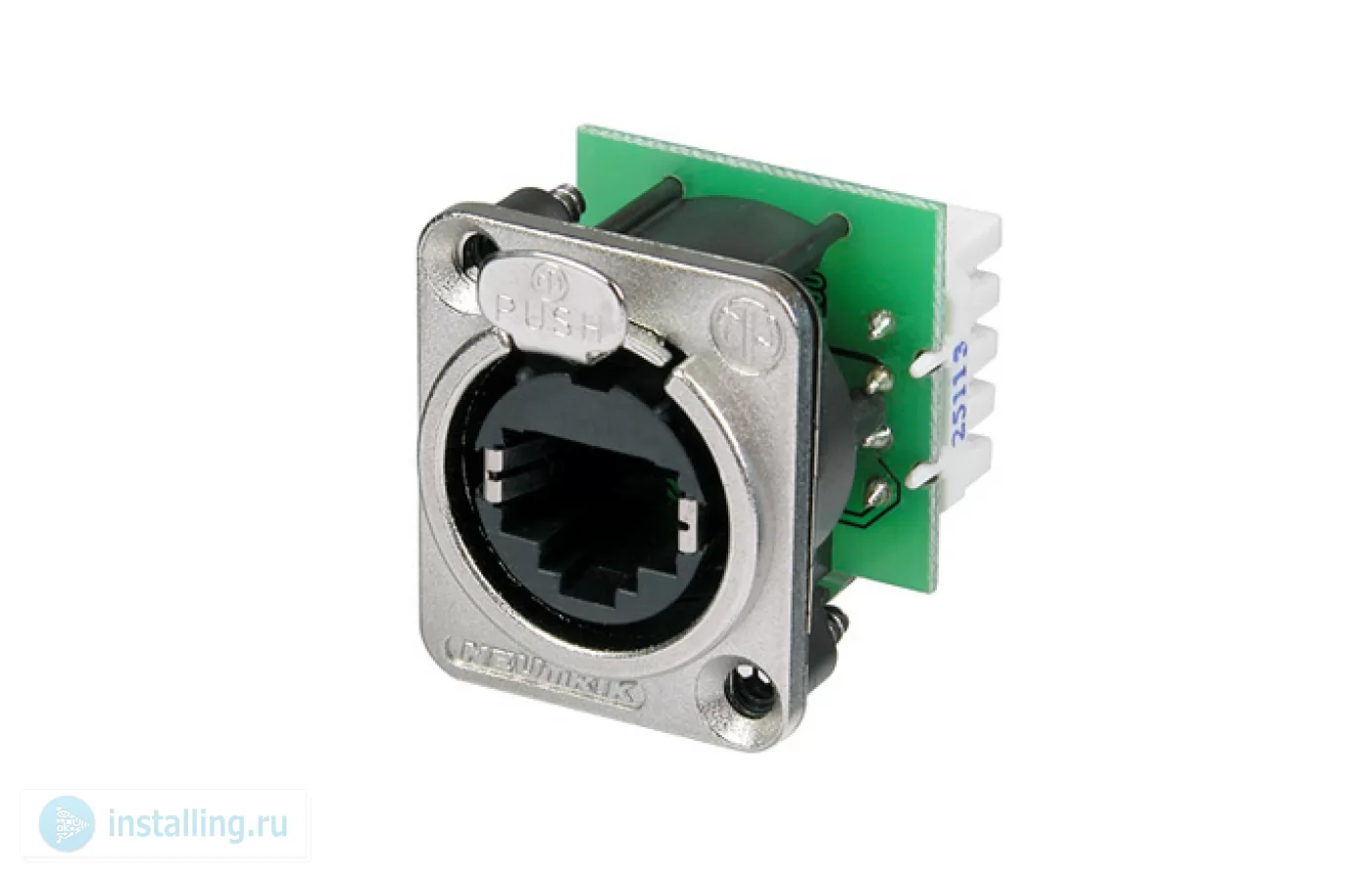

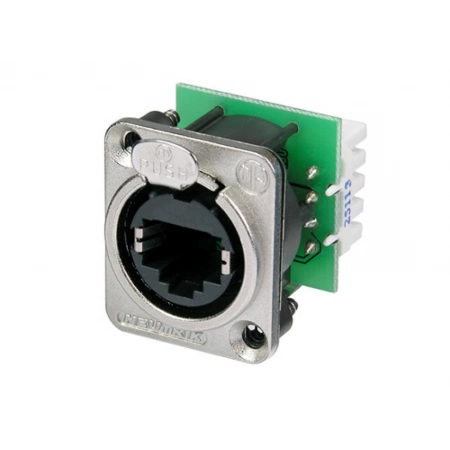

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4 mm. Mounting screws included.


Features & Benefits
Accommodates NE8MC* or any standard RJ45 plug
Approved latch lock system
Mountable from the front or rear of the panel
Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Selectable ground - panel connection
Easy and quick mounting using Krone punch down terminals
