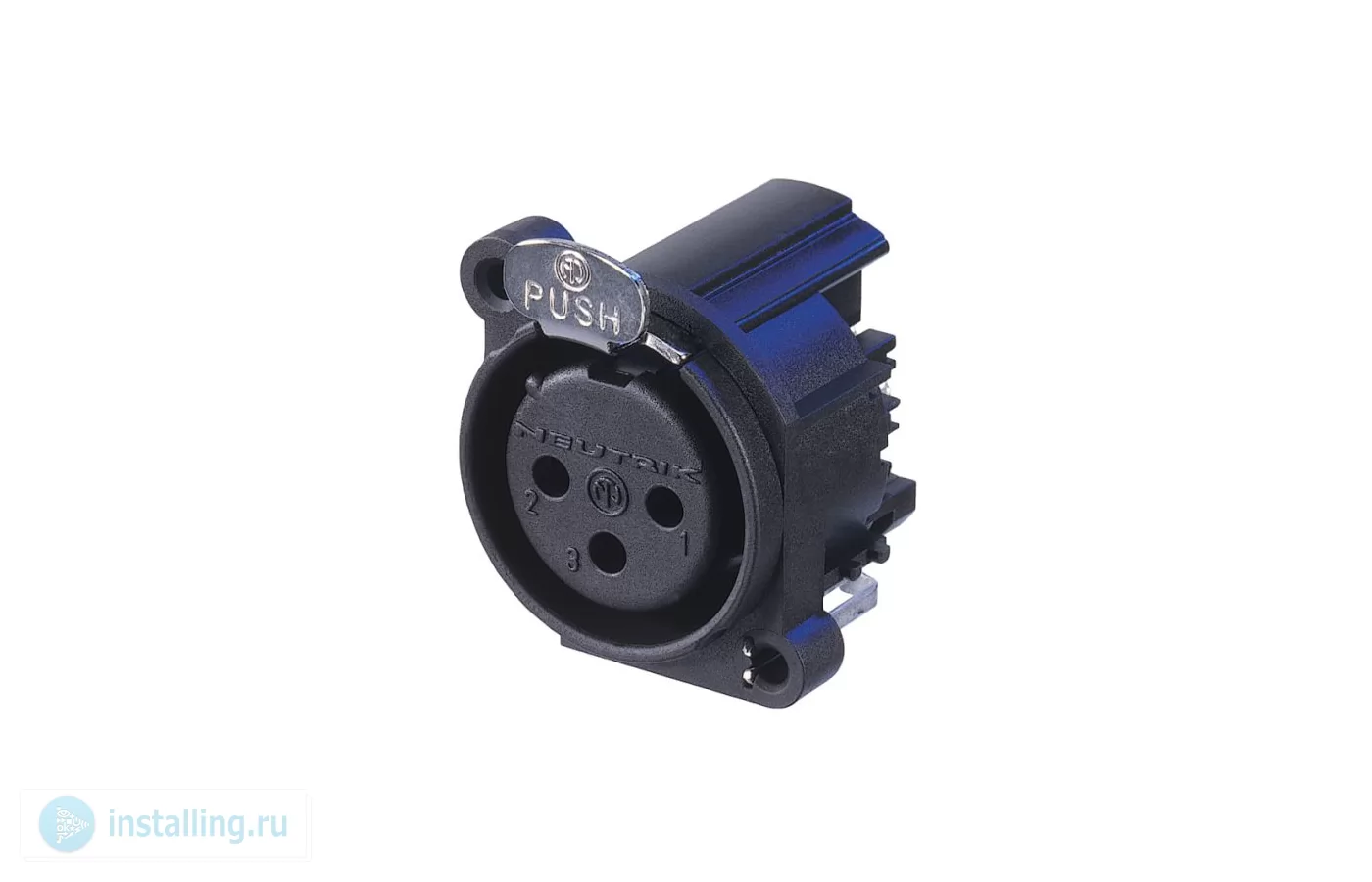

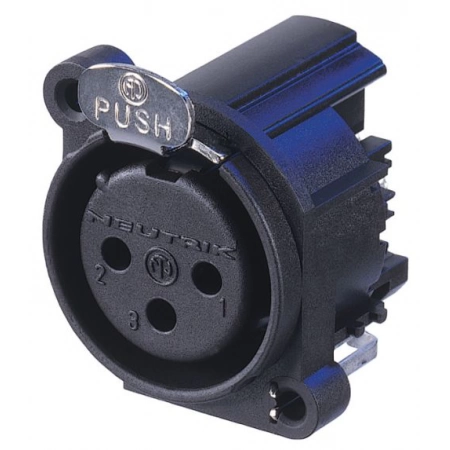

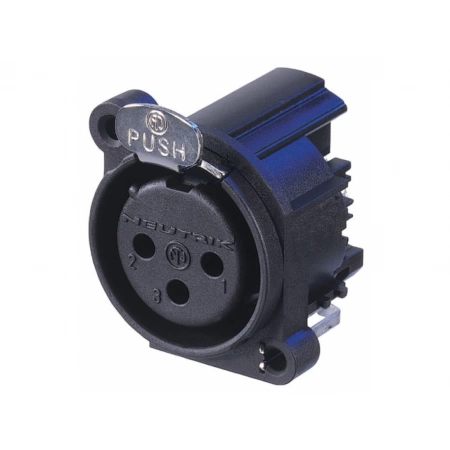

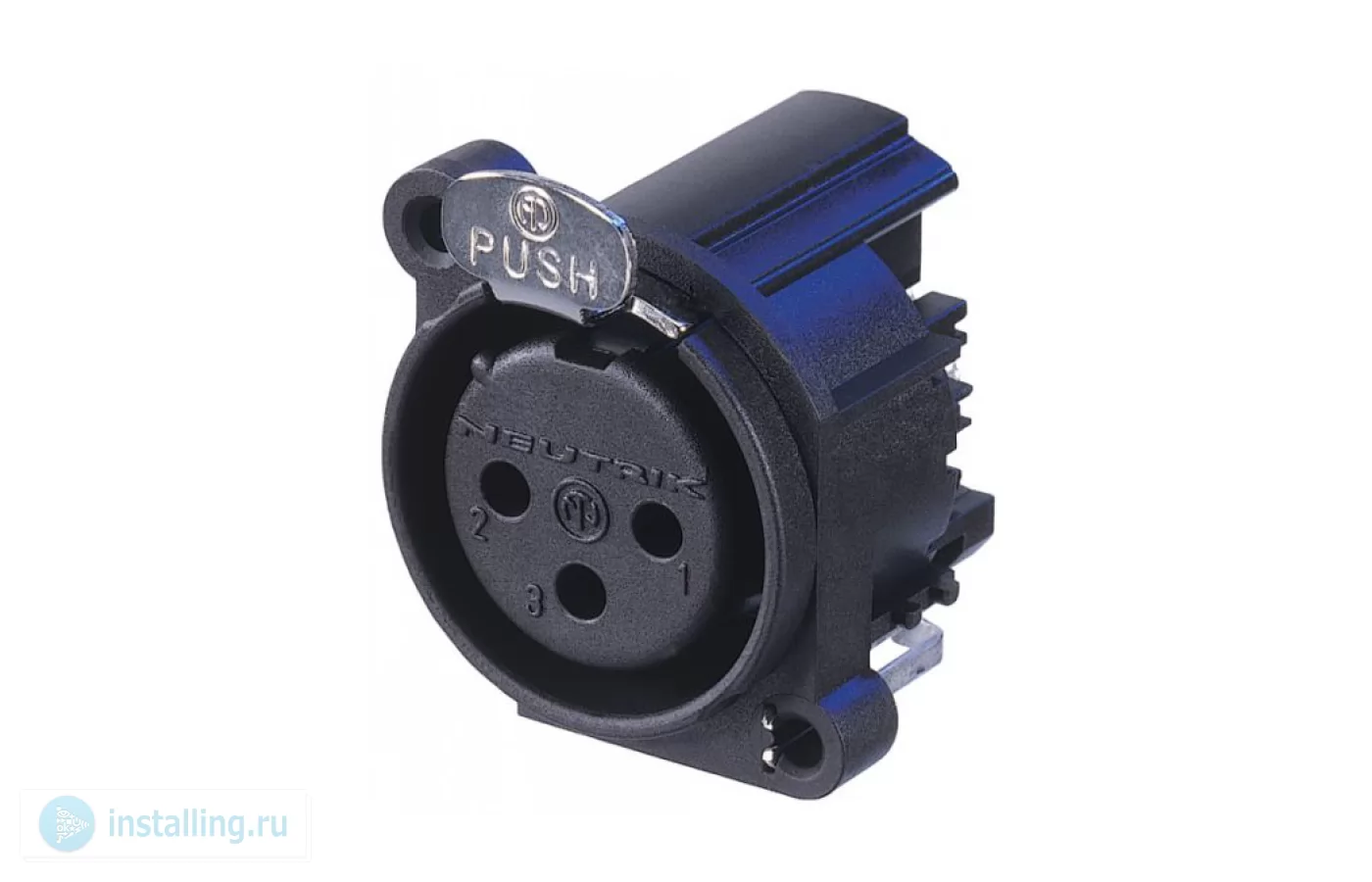

The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.
3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
Features & Benefits
Smallest XLR receptacles, highest packing density
Plastic housing, steel latch lock
Tulip type female contact
Polished contact areas and hard gold plating
Housing flammability UL94 V-0
Product
Connector Type XLR
Gender female
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 6 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 2 G? (initial)
Insulation resistance > 1 G? (after damp heat test)
Rated current per contact 6 A
Rated voltage 50 V
Grounding options Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device latch lock
Mounting direction rear
Chassis shape A
Mounting A-Screw
Material
Contact plating 0.2 µm AuCo over 2 µm NiP15 (Tribor®)
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6.6 25 % GR)
Locking element Steel Ck67
Flange Black Plastic
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
