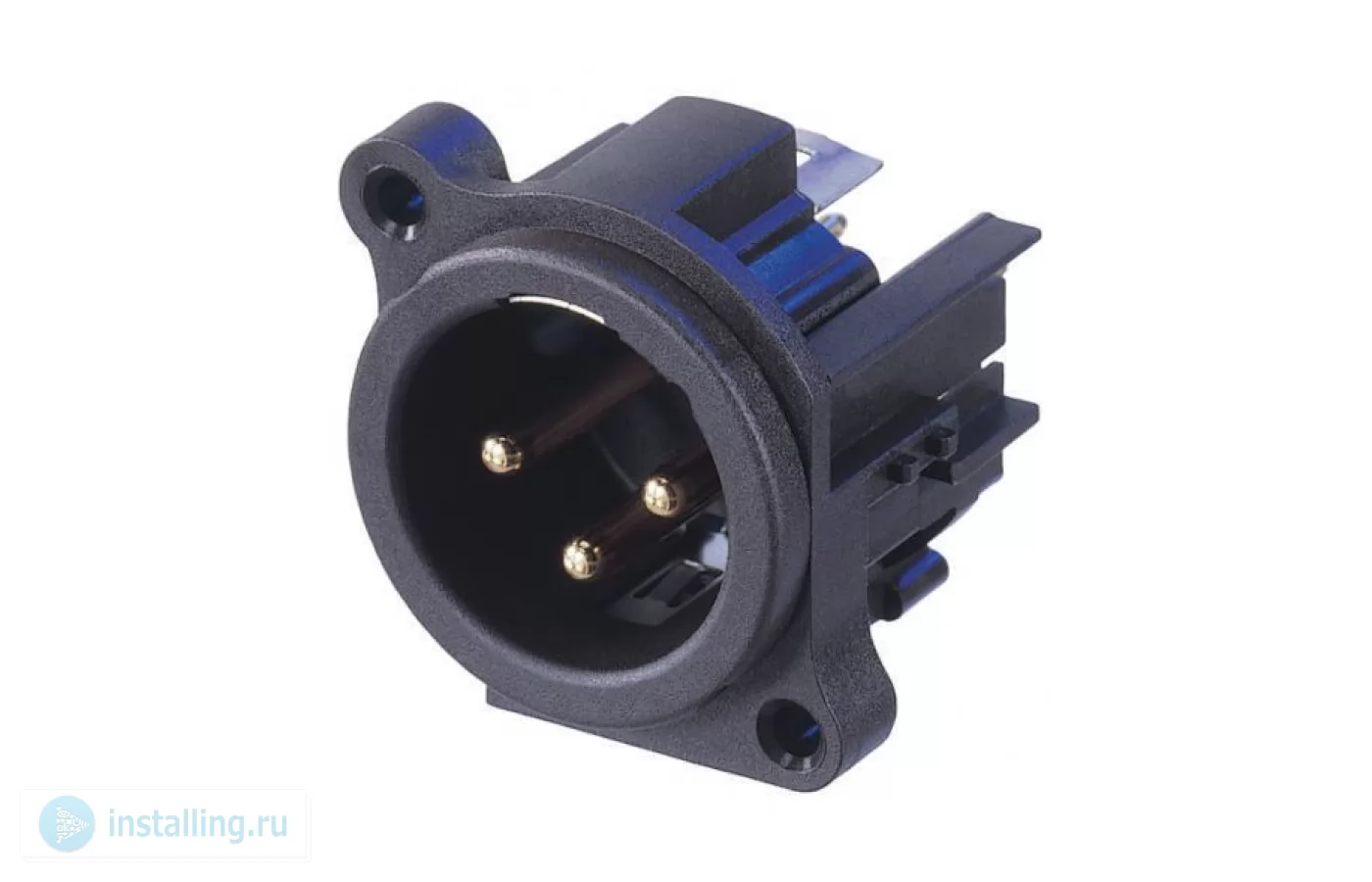

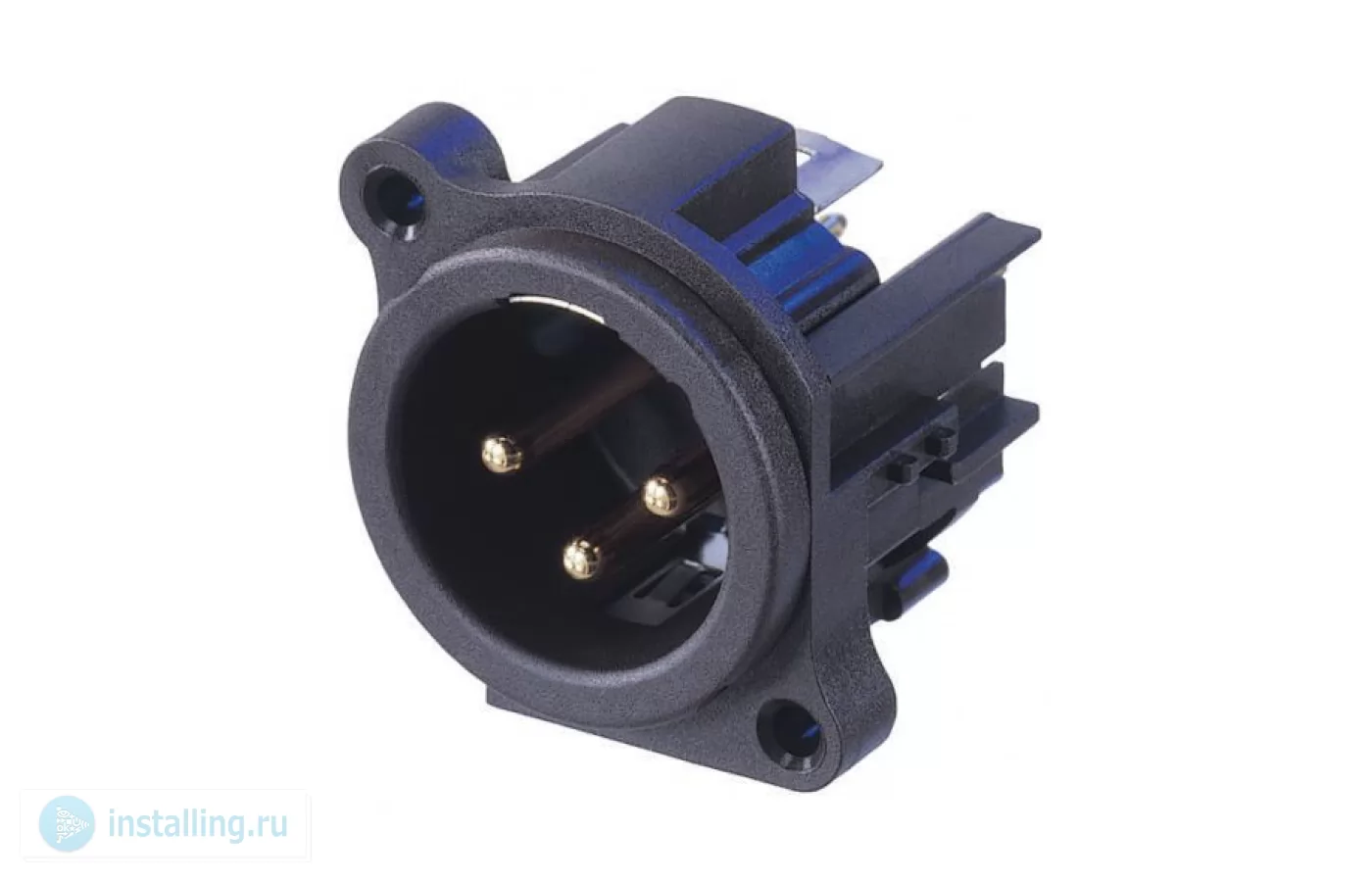

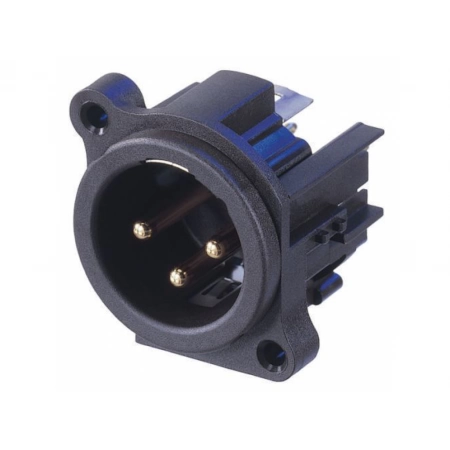

The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Features & Benefits
Smallest XLR receptacles, highest packing density
Plastic housing
Polished contact areas and hard gold plating
Housing flammability UL94 V-0
Product
Connector Type XLR
Gender male
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 6 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 2 G? (initial)
Insulation resistance > 1 G? (after damp heat test)
Rated current per contact 6 A
Rated voltage 50 V
Grounding options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wiring Vertical PCB mount
Locking device latch lock
Mounting direction rear
Chassis shape A
Mounting A-Screw
Material
Contact plating 0.2 µm AuCo over 2 µm NiP15 (Tribor®)
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Flange Black Plastic
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
