Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

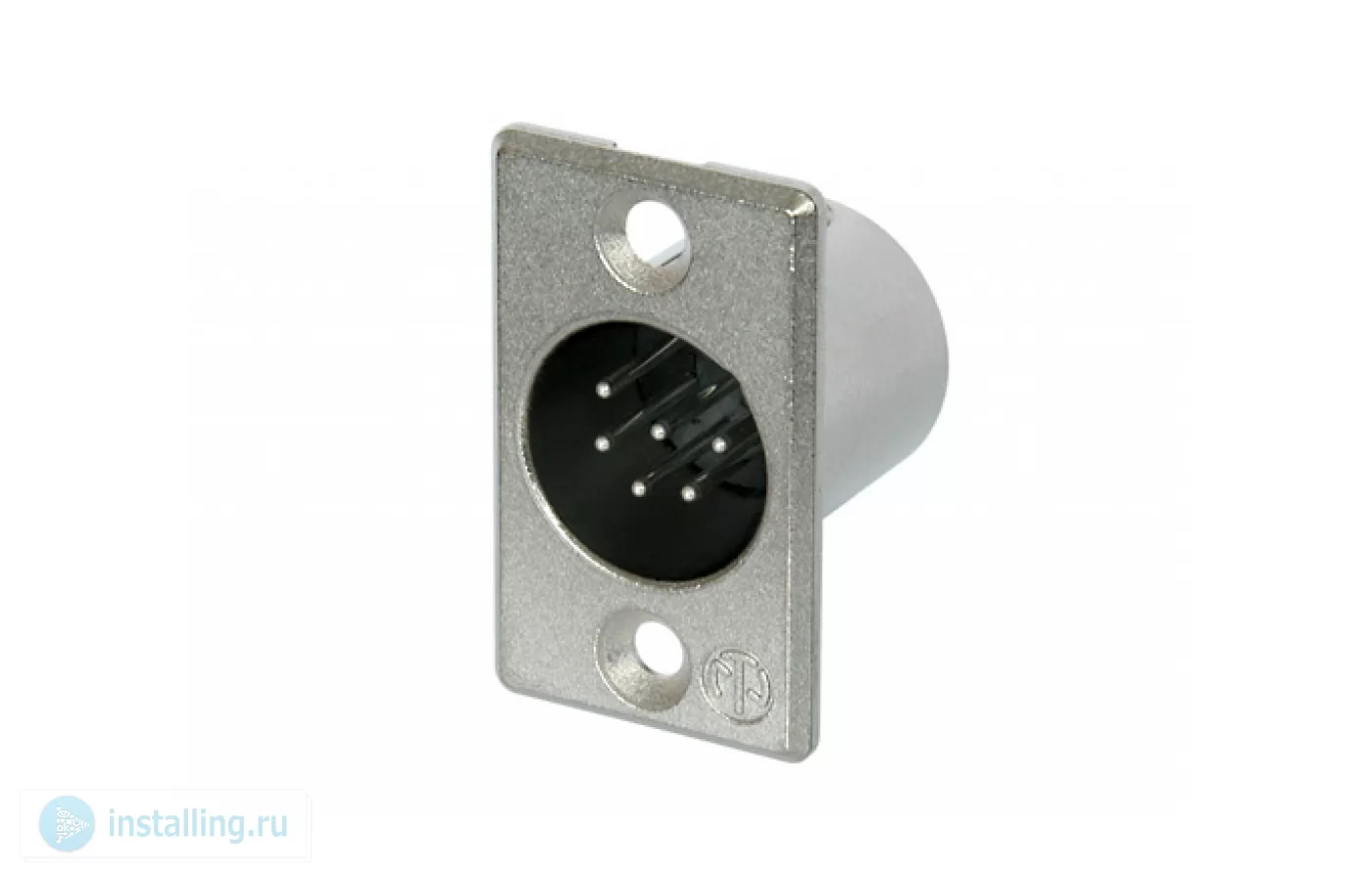

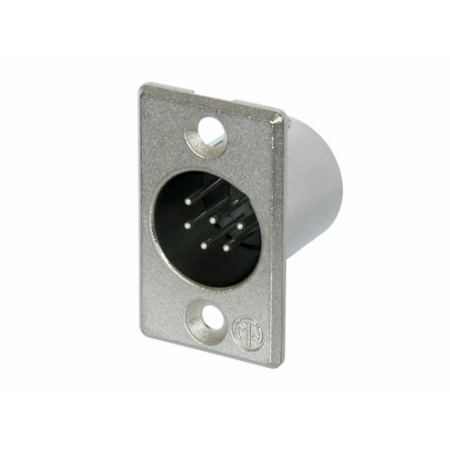

6 pole male receptacle, solder contacts, Nickel housing, silver contacts
Features & Benefits
Smallest available hard wiring receptacles with large solder cups
Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
6 pole version available with Switchcraft contact arrangement (NC6FSP-1, NC6MSP)
Product
Connector Type XLR
Gender male
Electrical
Capacitance between contacts ? 7 pF
Contact resistance ? 5 m?
Dielectric strength 1,5 kVdc
Insulation resistance > 2 G? (initial)
Insulation resistance > 1 G? (after damp heat test)
Rated current per contact 7,5 A
Rated voltage 50 V
Mechanical
Insertion force ? 20 N
Withdrawal force ? 20 N
Lifetime > 1000 mating cycles
Wire size max. 1.0 mm?
Wire size max. 18 AWG
Wiring Solder contacts
Locking device latch lock
Mounting direction front
Chassis shape P
Material
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
